6. Render Filters and Block Styles

This is the first time you'll write PHP in the theme. You'll use the render_block filter to enhance block output on the frontend and unregister unwanted core block styles in JavaScript.

Learning Outcomes

1. Know how to use the render_block filter and WP_HTML_Tag_Processor to modify block output.
2. Understand the PHP module system (ModuleInterface, Module trait) used in the scaffold.
3. Be able to unregister core block styles using unregisterBlockStyle().

Context

The scaffold's src/Blocks.php already handles block registration and CSS autoenqueuing. We'll add two render filter methods to this module, and create a new JS file to clean up the editor's block style options.

Part A: PHP render filters

Walk through these step by step. This introduces the render_block filter pattern and WP_HTML_Tag_Processor.

The PHP module pattern

Before writing code, let's understand how the scaffold's PHP modules work. Every module in src/ implements ModuleInterface with three methods:

interface ModuleInterface {
    public function can_register(): bool;  // Should this module load?
    public function register();            // Hook in
    public function load_order(): int;     // Priority (lower = earlier)
}

The framework auto-discovers all classes in src/ that implement this interface. You just drop in a class and it registers itself, no manual wiring needed.

Not using the 10up scaffold? Here's the vanilla equivalent.

The Module pattern is a thin layer over standard WordPress hooks. A class that calls add_filter() inside register() is equivalent to wiring the same filter up directly in functions.php or a plugin file:

// Vanilla equivalent of a Module class.
add_action( 'init', function () {
    add_filter( 'render_block_core/post-featured-image', 'filter_featured_image_block', 10, 3 );
} );

function filter_featured_image_block( $block_content, $block, $instance ) {
    // Same body shown below.
}

The scaffold's can_register() / register() / load_order() methods give you a consistent place to put this wiring and let the framework call it at the right time. If you're working without the scaffold, drop the class wrapper and call add_action / add_filter directly.

src/Blocks.php already exists and hooks into init. We'll add two new methods and register them with the render_block filter.

1. Add view-transition-name to featured images

Add a filter_featured_image_block() method to the bottom of src/Blocks.php, just above the closing } of the class. It injects a view-transition-name style on core/post-featured-image blocks using WP_HTML_Tag_Processor:

src/Blocks.php (new method)

public function filter_featured_image_block( $block_content, $block, $instance ) {

    if ( empty( $instance->context['postId'] ) ) {
        return $block_content;
    }

    $featured_image_id = get_post_thumbnail_id( $instance->context['postId'] );

    $p = new WP_HTML_Tag_Processor( $block_content );

    if ( ! $p->next_tag() ) {
        return $block_content;
    }

    if ( $p->has_class( 'is-style-single-movie-backdrop' ) ) {
        return $block_content;
    }

    $style_attribute       = $p->get_attribute( 'style' );
    $view_transition_style = "view-transition-name: post-featured-image-id-{$featured_image_id};";

    if ( false === strpos( $style_attribute, $view_transition_style ) ) {
        $style_attribute = $view_transition_style . $style_attribute;
    }

    $p->set_attribute( 'style', $style_attribute );

    return $p->get_updated_html();
}

WP_HTML_Tag_Processor is WordPress's safe way to modify HTML. It parses the block's output, lets you read/modify attributes, and generates the updated HTML. It avoids the fragility of string manipulation or regex on HTML.

Note the two guards up top: we bail out if there's no post to read a thumbnail from, and if the block has no HTML tag to modify. Skipping these means the rest of the function can error on empty or malformed block output.

2. Add flex-shrink-0 to fixed-width blocks

Add a maybe_add_flex_shrink() method beneath the method you just added. This is a workaround for a Gutenberg issue #53766 where blocks with selfStretch: "fixed" don't get flex-shrink: 0:

src/Blocks.php (new method)

public function maybe_add_flex_shrink( $block_content, $block, $instance ) {

    if ( isset( $block['attrs']['style']['layout']['selfStretch'] ) && 'fixed' === $block['attrs']['style']['layout']['selfStretch'] ) {
        $tags = new WP_HTML_Tag_Processor( $block_content );

        if ( ! $tags->next_tag() ) {
            return $block_content;
        }

        $tags->add_class( 'flex-shrink-0' );
        $block_content = $tags->get_updated_html();
    }

    return $block_content;
}

3. Replace href-less button anchors with spans

Our card pattern (which becomes a custom block in Lesson 9) renders decorative "Trailer" and "View More" buttons with no href. The card title already carries the real link (isLink: true), which gives screen readers the actual post title for context rather than a generic button label. Leaving the decorative buttons as real anchors causes two problems:

1. Duplicate link noise: a second <a> to the same destination shows up in the tab order and in the screen reader's links list, with no clearer label than the title link already provides.
2. Click capture: when the entire card is made clickable (see Lesson 5), an inner <a> swallows the click before it can bubble up to trigger the card-level navigation.

The fix is a render_block_core/button filter that swaps the <a> for a <span> whenever no href is present. Add neutralize_empty_button_link() to src/Blocks.php:

src/Blocks.php (new method)

public function neutralize_empty_button_link( $block_content ) {

    if ( ! str_contains( $block_content, '<a' ) ) {
        return $block_content;
    }

    return preg_replace_callback(
        '#<a\b([^>]*)>(.*?)</a>#is',
        function ( $matches ) {
            if ( preg_match( '/\bhref\s*=/i', $matches[1] ) ) {
                return $matches[0];
            }
            return '<span' . $matches[1] . '>' . $matches[2] . '</span>';
        },
        $block_content
    );
}

Why regex here instead of WP_HTML_Tag_Processor like the other filters? The tag processor can read and write attributes but cannot rename a tag from <a> to <span>. Regex is the practical choice for this narrow case, scoped to the core/button render output where the markup shape is predictable.

Register all three filters inside the register() method of Blocks.php, after the existing add_action lines:

add_filter( 'render_block_core/post-featured-image', [ $this, 'filter_featured_image_block' ], 10, 3 );
add_filter( 'render_block_core/button', [ $this, 'neutralize_empty_button_link' ], 10, 1 );
add_filter( 'render_block', [ $this, 'maybe_add_flex_shrink' ], 10, 3 );

tip

The render_block_{block-name} filter targets a specific block type. The generic render_block filter runs for every block. Use the specific filter when you can to avoid unnecessary processing.

Part B: Unregistering block styles

The editor ships with default block styles (fill/outline for buttons, dots/wide for separators, etc.) that we don't need. We'll remove them to keep the editor clean.

1. Create assets/js/block-styles/index.js

assets/js/block-styles/index.js

import { unregisterBlockStyle } from '@wordpress/blocks';
import domReady from '@wordpress/dom-ready';

domReady(() => {
    unregisterBlockStyle('core/button', 'fill');
    unregisterBlockStyle('core/button', 'outline');
    unregisterBlockStyle('core/quote', 'default');
    unregisterBlockStyle('core/quote', 'plain');
    unregisterBlockStyle('core/quote', 'large');
    unregisterBlockStyle('core/table', 'regular');
    unregisterBlockStyle('core/table', 'stripes');
    unregisterBlockStyle('core/image', 'default');
    unregisterBlockStyle('core/image', 'rounded');
    unregisterBlockStyle('core/separator', 'default');
    unregisterBlockStyle('core/separator', 'wide');
    unregisterBlockStyle('core/separator', 'dots');
    unregisterBlockStyle('core/site-logo', 'default');
    unregisterBlockStyle('core/site-logo', 'rounded');
});

domReady ensures the block styles are registered before we try to unregister them. Without it, the unregister calls might fire too early.

We could similarly use registerBlockStyle() here as mentioned in the previous lesson (This is not necessary for our training).

import { registerBlockStyle, unregisterBlockStyle } from '@wordpress/blocks';
import domReady from '@wordpress/dom-ready';

domReady(() => {
	unregisterBlockStyle('core/button', 'fill');
	unregisterBlockStyle('core/button', 'outline');

	registerBlockStyle('core/button', {
		name: 'primary',
		label: 'Primary',
		isDefault: true,
	});

	registerBlockStyle('core/button', {
		name: 'secondary',
		label: 'Secondary',
	});
});

2. Import from the editor entry point

Add the import to assets/js/block-extensions.js:

import './block-styles';

This is the editor-only JS entry point. It's loaded via enqueue_block_editor_assets in src/Assets.php.

3. Rebuild and verify

Run npm run build. Open the editor, select a Button block, and confirm the "Fill" and "Outline" styles are gone from the Styles panel.

info

To sync our theme with the finished product, run these commands and then add import './block-styles'; to assets/js/block-extensions.js:

cp themes/fueled-movies/src/Blocks.php themes/10up-block-theme/src/Blocks.php
mkdir -p themes/10up-block-theme/assets/js/block-styles
cp themes/fueled-movies/assets/js/block-styles/index.js themes/10up-block-theme/assets/js/block-styles/index.js

The answer-key Blocks.php also includes a localize_block_editor_data() method that this lesson hasn't introduced yet. It powers an editor placeholder URL for the Movie Trailer block and is covered in Lesson 12. Safe to leave alone for now.

Files changed in this lesson

File	Change type	What changes
src/Blocks.php	Modified	Added filter_featured_image_block() for view-transition-name; added neutralize_empty_button_link() to swap href-less button anchors for spans; added maybe_add_flex_shrink() for fixed-width blocks
assets/js/block-styles/index.js	New	unregisterBlockStyle() calls for button, quote, table, image, separator, site-logo
assets/js/block-extensions.js	Modified	Added import './block-styles'

Ship it checkpoint

• View transition names visible on featured images in DevTools
• flex-shrink-0 class applied to fixed-width blocks
• Decorative card buttons (Trailer, View More) render as <span> rather than <a> on the frontend
• Core block styles (fill, outline, etc.) are removed from the inspector

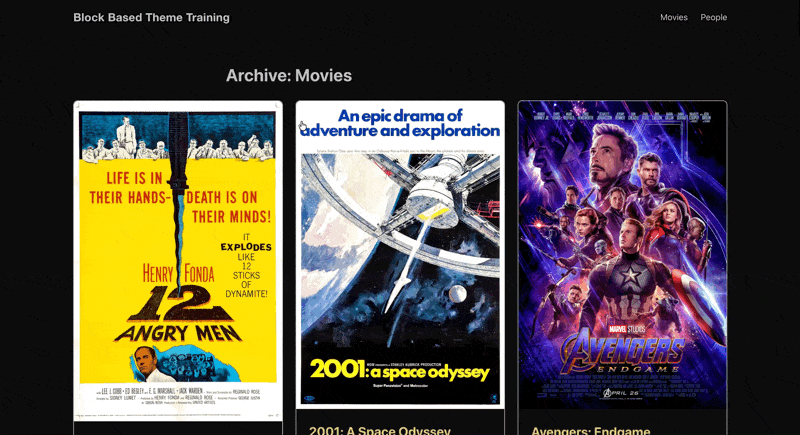

Our Featured Image view-transitions in action

Takeaways

• The render_block filter lets you modify any block's HTML output on the frontend.
• WP_HTML_Tag_Processor is the safe way to modify block HTML attributes. Avoid string manipulation where possible. Regex is the fallback when you need to rewrite the tag itself.
• Use render_block_{block-name} for targeted filters, render_block for broad ones.
• unregisterBlockStyle() + domReady() removes unwanted core block styles from the editor.
• The editor-only JS entry point (block-extensions.js) is where editor customizations live.

Further reading

• Block Extensions
• WP_HTML_Tag_Processor (WordPress Developer Resources)
