12. Custom Blocks: Cards, Trailers, Runtime, and Description Lists

Core blocks cover most layout needs, but some HTML structures and rendering needs have no core equivalent. This lesson builds five custom blocks: the tenup/card block that the archive templates from Lesson 9 reference, the tenup/movie-trailer block that the single movie template from Lesson 10 references, a description list family (<dl>, <dt>, <dd>) for the single templates, and a semantic time block for movie runtime.

Learning Outcomes

Understand a custom block's anatomy: block.json, index.js, render.php, style.css.
Know how to build parent/child block relationships using parent and allowedBlocks.
Be able to create a dynamic block that renders via PHP.
Understand how usesContext lets a block read data from the query loop.
Know how get_block_wrapper_attributes() handles wrapper output.

info

To sync your theme with the finished product, run these commands:

mkdir -p themes/10up-block-theme/blocks
cp -r themes/fueled-movies/blocks/dl themes/10up-block-theme/blocks/dl
cp -r themes/fueled-movies/blocks/dl-item themes/10up-block-theme/blocks/dl-item
cp -r themes/fueled-movies/blocks/dt themes/10up-block-theme/blocks/dt
cp -r themes/fueled-movies/blocks/dd themes/10up-block-theme/blocks/dd
cp -r themes/fueled-movies/blocks/movie-runtime themes/10up-block-theme/blocks/movie-runtime
cp -r themes/fueled-movies/blocks/card themes/10up-block-theme/blocks/card
cp -r themes/fueled-movies/blocks/movie-trailer themes/10up-block-theme/blocks/movie-trailer
cp themes/fueled-movies/src/Blocks.php themes/10up-block-theme/src/Blocks.php

The last line picks up the localize_block_editor_data() method on Blocks.php, which the Movie Trailer block depends on. We'll cover what it does below.

Run npm run build when complete.

Tasks

1. Copy blocks from the answer key

Copy the block directories listed above from the fueled-movies theme and rebuild.

The theme's src/Blocks.php already auto-registers any block with a block.json in the blocks/ directory, so no additional PHP registration is needed.

2. Walk through the DL block family

The description list system is a four-block hierarchy for displaying movie and person metadata:

tenup/dl              - Parent: the <dl> wrapper
└── tenup/dl-item     - Child: a term+description pair
    ├── tenup/dt      - Leaf: the <dt> term
    └── tenup/dd      - Leaf: the <dd> description (can contain other blocks)

Enforcing structure with parent and allowedBlocks

The nesting rules are defined in each block's block.json:

blocks/dl-item/block.json (partial)
{
    "name": "tenup/dl-item",
    "title": "Description List Item",
    "parent": ["tenup/dl"]
}

blocks/dt/block.json (partial)
{
    "name": "tenup/dt",
    "title": "Description List Term",
    "parent": ["tenup/dl-item"]
}

parent restricts where a block can be inserted. tenup/dl-item can only exist inside tenup/dl. tenup/dt and tenup/dd can only exist inside tenup/dl-item.*
The DL block uses InnerBlocks to accept child blocks. The editor automatically filters the inserter to only show allowed children.

* Alternatively, there is also ancestor to be allowed at any level within a blocks nested innerblocks

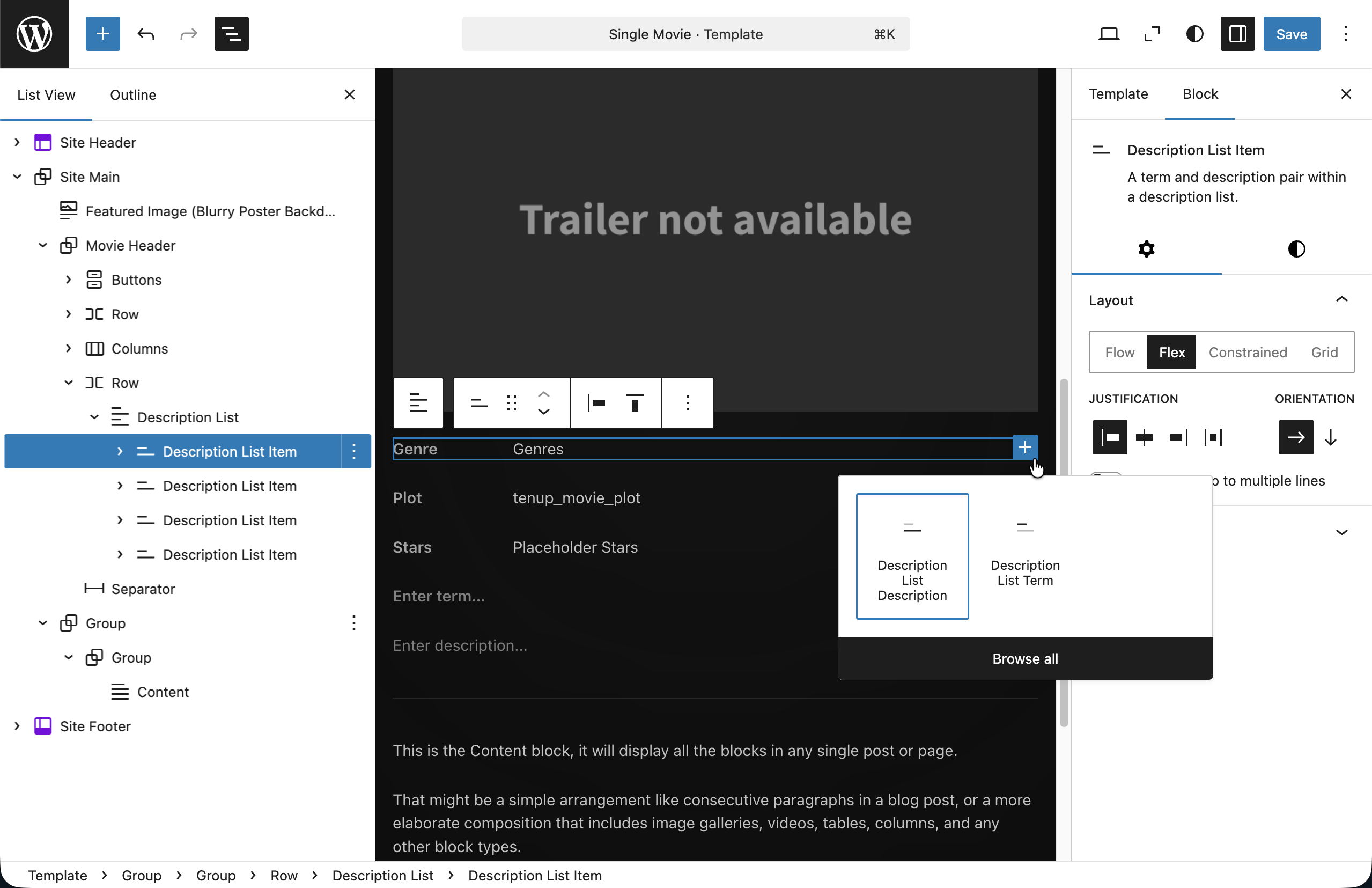

The Description List block used in the inserter

Dynamic rendering with render.php

At 10up we build dynamic blocks: blocks that render on the server via PHP. The render.php file is referenced as render in block.json:

blocks/dl/block.json (partial)
{
    "name": "tenup/dl",
    "render": "file:./render.php",
    "editorScript": "file:./index.js",
    "style": "file:./style.css"
}

The PHP render template receives three variables:

blocks/dl/render.php
<?php
/**
 * @var array    $attributes Block attributes.
 * @var string   $content    Block content (inner blocks).
 * @var WP_Block $block      Block instance.
 */

if ( empty( trim( $content ) ) ) {
    return;
}

$block_wrapper_attributes = get_block_wrapper_attributes();
?>

<dl <?php echo $block_wrapper_attributes; ?>>
    <?php echo $content; ?>
</dl>

$attributes: the block's saved attributes (from block.json)
$content: the rendered HTML of inner blocks (already processed by WordPress)
$block: the full WP_Block instance (access context via $block->context when usesContext is set in block.json)

get_block_wrapper_attributes() generates the correct wrapper attributes (classes, styles, IDs) based on block supports. Always use this instead of building class names manually.

tip

Dynamic blocks avoid deprecation headaches: the markup isn't saved to the database, so you can change it anytime without migration scripts. This is why 10up uses dynamic blocks as the standard.

The editor component

The editor side uses useBlockProps and useInnerBlocksProps from @wordpress/block-editor:

blocks/dl/index.js
import { registerBlockType } from '@wordpress/blocks';
import { InnerBlocks } from '@wordpress/block-editor';
import { BlockEdit } from './edit';
import metadata from './block.json';

registerBlockType(metadata, {
    edit: BlockEdit,
    save: () => <InnerBlocks.Content />,
});

For dynamic blocks, the save function returns <InnerBlocks.Content /> (if the block has inner blocks) or null (if it doesn't). The actual frontend markup comes from render.php.

Auto-registration

You don't need to manually register blocks. src/Blocks.php globs dist/blocks/*/block.json and calls register_block_type_from_metadata() for each:

src/Blocks.php (simplified)
public function register_theme_blocks() {
    $block_json_files = glob( TENUP_BLOCK_THEME_BLOCK_DIST_DIR . '*/block.json' );

    foreach ( $block_json_files as $filename ) {
        $block_folder = dirname( $filename );
        register_block_type_from_metadata( $block_folder );
    }
}

Drop a folder with a block.json into blocks/ and it's automatically available.

3. Walk through the Movie Runtime block

The tenup/movie-runtime block demonstrates reading data from the post via block context:

blocks/movie-runtime/block.json (partial)
{
    "name": "tenup/movie-runtime",
    "usesContext": ["postId", "postType"],
    "render": "file:./render.php"
}

blocks/movie-runtime/render.php (simplified)
$post_id = $block->context['postId'] ?? null;
if ( ! $post_id ) {
    return;
}

$runtime = get_post_meta( $post_id, 'tenup_movie_runtime', true );
$hours   = $runtime['hours'] ?? '0';
$minutes = $runtime['minutes'] ?? '0';

if ( '0' === $hours && '0' === $minutes ) {
    return;
}
?>

<time <?php echo get_block_wrapper_attributes( [
    'datetime' => esc_attr( 'PT' . $hours . 'H' . $minutes . 'M' ),
] ); ?>>
    <?php // renders "2h 28m" with ARIA labels ?>
</time>

The usesContext declaration in block.json tells WordPress to pass postId and postType from the query loop context. This lets the block read meta for whatever post it's rendering inside, without hardcoding a post ID.

tip

Inside the editor, usePostMetaValue from @10up/block-components reads a single meta key against the current post context with one line:

const [runtime] = usePostMetaValue('tenup_movie_runtime');

It's a thinner alternative to the useEntityProp('postType', postType, 'meta', postId) pattern from Lesson 8 when you only need one key. The PostMeta component used in that lesson's sidebar panels is still the right tool there; usePostMetaValue shines inside edit.js for blocks like Movie Trailer below.

4. Walk through the Card block

The Card block is what the archive templates from Lesson 9 reference via . It demonstrates three patterns worth knowing:

A single attribute (variant) that exposes multiple entries in the inserter via block variations.
A parent constraint that ties the block to a specific context.
An editor preview composed from a pattern in the registry.

Variant attribute and block variations

block.json declares one attribute and three variations:

blocks/card/block.json (partial)
{
    "name": "tenup/card",
    "title": "Card",
    "attributes": {
        "variant": {
            "type": "string",
            "default": "default"
        }
    },
    "parent": ["core/post-template"],
    "variations": [
        {
            "name": "default",
            "title": "Card",
            "attributes": { "variant": "default" },
            "isActive": ["variant"],
            "isDefault": true,
            "scope": ["inserter"]
        },
        {
            "name": "movie",
            "title": "Movie Card",
            "attributes": { "variant": "movie" },
            "isActive": ["variant"],
            "scope": ["inserter"]
        },
        {
            "name": "person",
            "title": "Person Card",
            "attributes": { "variant": "person" },
            "isActive": ["variant"],
            "scope": ["inserter"]
        }
    ]
}

The isActive: ['variant'] array is the important bit. It tells the editor to identify the active variation by comparing the block instance's variant attribute against each variation's attribute value. That's what lights up "Movie Card" or "Person Card" in the block toolbar, breadcrumb, and List View when an editor selects a card. Without isActive, all three variations would render as the generic "Card" title at runtime and an editor would have no quick way to tell them apart.

parent: ["core/post-template"] ensures the block can only be inserted inside a Query Loop's Post Template. The variant-driven bindings inside the inner patterns only resolve against a post context, so the constraint surfaces the rule to editors before they're confused by it.

tip

ancestor is also a suitable alternative when the block just needs to exist somewhere within a parent and could be safely nested in Groups or the like.

Editor preview from the inner patterns

The block's edit.js looks up the matching card-inner-{variant} pattern by slug from WordPress's block pattern registry, parses it, and feeds the parsed blocks into useInnerBlocksProps as a template:

blocks/card/edit.js (simplified)
const patternContent = useSelect(
    (select) =>
        select('core').getBlockPatterns?.()
            ?.find((pattern) => pattern.name === `tenup-theme/card-inner-${variant}`)
            ?.content ?? '',
    [variant],
);

const template = useMemo(() => blocksToTemplate(parse(patternContent)), [patternContent]);

const blockProps = useBlockProps({ className: 'is-clickable-card' });
const innerBlocksProps = useInnerBlocksProps(blockProps, {
    template,
    templateLock: 'all',
    renderAppender: false,
});

save: () => null keeps the persisted markup small. The only thing that round-trips through the editor is . Both the editor preview and the frontend re-derive the visual from the inner pattern, which keeps the storage tiny and the rendering safe across editor exports (the paste-safety argument from Lesson 9).

note

Why not just [['core/pattern', { slug }]] as the template? core/pattern expands itself by dispatching replaceBlocks on mount, and a templateLock: 'all' parent blocks that dispatch. The expanded preview never appears; the placeholder text stays in view. Parsing the pattern ahead of time and feeding the resulting blocks into the template sidesteps the conflict. Worth knowing if you hit "Pattern Placeholder" stuck in a locked block.

The is-clickable-card class on the block wrapper hooks into the JS utility from Lesson 5, and the Lesson 6 button filter keeps the decorative Trailer / View More buttons from intercepting card-level clicks.

5. Walk through the Movie Trailer block

blocks/movie-trailer/ is the block referenced from the single movie template you copied in Lesson 10. It reads a movie's IMDB trailer ID from post meta and renders either an iframe embed of the trailer or a placeholder image when no trailer is set. The same paste-safety argument from Lesson 9 applies here: storing meta-driven rendering inside a block keeps it working across editor round-trips.

The frontend reads tenup_movie_trailer_id from the current post and renders either an IMDB iframe embed or a placeholder image:

blocks/movie-trailer/render.php (simplified)
$post_id = $block->context['postId'] ?? null;
if ( ! $post_id ) {
    return;
}

$trailer_id      = get_post_meta( $post_id, 'tenup_movie_trailer_id', true );
$placeholder_url = get_theme_file_uri( 'blocks/movie-trailer/placeholder.png' );

if ( empty( $trailer_id ) ) : ?>
    <figure <?php echo get_block_wrapper_attributes(); ?>>
        <img src="<?php echo esc_url( $placeholder_url ); ?>" alt="<?php esc_attr_e( 'Trailer not available', 'tenup-block-theme' ); ?>" />
    </figure>
<?php else :
    $embed_url = 'https://www.imdb.com/video/embed/' . $trailer_id . '/'; ?>
    <div <?php echo get_block_wrapper_attributes(); ?>>
        <iframe src="<?php echo esc_url( $embed_url ); ?>" allowfullscreen loading="lazy"></iframe>
    </div>
<?php endif;

`usePostMetaValue` in the editor

The editor preview mirrors the frontend with much less ceremony:

blocks/movie-trailer/edit.js
import { useBlockProps } from '@wordpress/block-editor';
import { usePostMetaValue } from '@10up/block-components';

export const BlockEdit = () => {
    const [trailerId] = usePostMetaValue('tenup_movie_trailer_id');
    const blockProps = useBlockProps();

    if (!trailerId) {
        const placeholderUrl = window.tenupMovieTrailer?.placeholderUrl ?? '';
        return (
            <figure {...blockProps}>
                <img src={placeholderUrl} alt="" />
            </figure>
        );
    }

    return (
        <div {...blockProps}>
            <iframe
                src={`https://www.imdb.com/video/embed/${trailerId}/`}
                allowFullScreen
                loading="lazy"
                title="Movie trailer"
            />
        </div>
    );
};

usePostMetaValue resolves the current post via usePost() internally, so the edit component never has to destructure props.context or pass postType/postId explicitly.

Placeholder URL via inline script

Notice window.tenupMovieTrailer?.placeholderUrl in the editor code. That global is populated by an inline script in src/Blocks.php:

src/Blocks.php (existing method)
public function localize_block_editor_data() {
    wp_add_inline_script(
        'tenup-movie-trailer-editor-script',
        sprintf(
            'window.tenupMovieTrailer = %s;',
            wp_json_encode( [
                'placeholderUrl' => get_theme_file_uri( 'blocks/movie-trailer/placeholder.png' ),
            ] )
        ),
        'before'
    );
}

Why an inline script at all? The intuitive solution would be import placeholderUrl from './placeholder.png' in edit.js. 10up-toolkit's default webpack configuration does not register an asset-module rule for binary imports, so PNG imports fall through and the build fails with "Unexpected character". You can extend the toolkit's webpack config to add the rule, or move the image to assets/images/ where the toolkit's CopyPlugin copies it into dist/images/. Until you do, an inline script that surfaces a server-derived URL through window.tenupMovieTrailer is the path of least resistance. This example is worth keeping in your back pocket whenever editor JS needs a value that only PHP can compute.

6. Revisit single templates

Update both single templates in the Site Editor to use the new blocks:

Single Movie (templates/single-tenup-movie.html):

Wrap plot, stars, and genre in tenup/dl blocks
Add tenup/movie-runtime to the metadata row

Notice how the tenup/dd blocks contain bound Paragraphs from Lesson 10. The Plot field uses core/post-meta (reading directly from meta), while the Stars field uses our custom tenup/block-bindings source (querying Content Connect relationships and returning linked names). The DL blocks provide the semantic HTML structure; the bindings provide the dynamic data.

warning

Is it worth mentioning once more here that our bindings will still return an empty paragraph tag if they are not set (i.e. - no Plot meta or Stars relationship).

For our custom binding, we can return the fallback in our php callback if we wish, but our for our core/post-meta binding we would add our fallback here in the template.

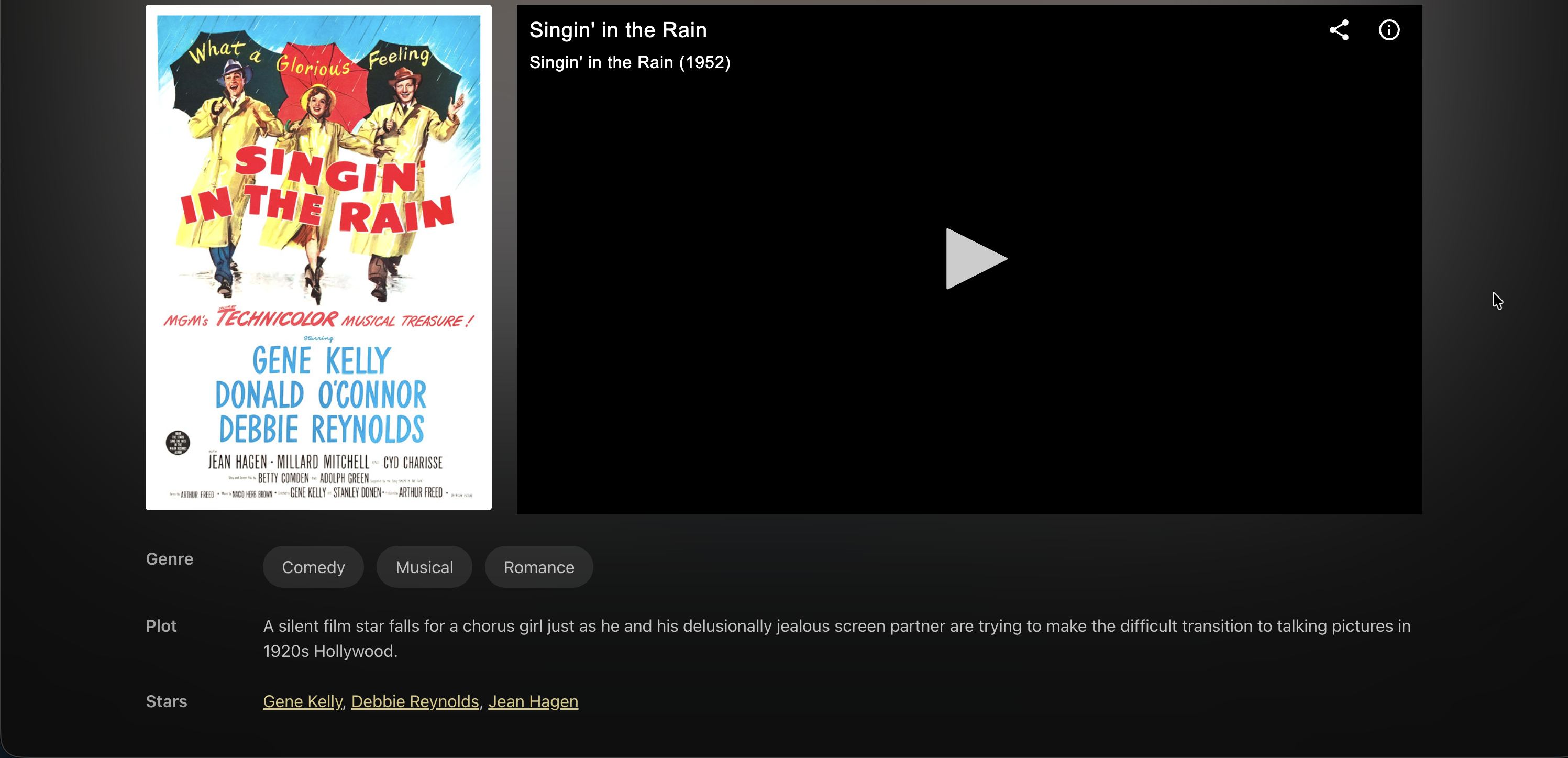

DL usage example in single-tenup-movie.html
<!-- wp:tenup/dl {"style":{"layout":{"selfStretch":"fill"}},"layout":{"type":"default"}} -->
    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Genre","style":{"layout":{"selfStretch":"fixed","flexSize":"5.5rem"}},"textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd {"style":{"layout":{"selfStretch":"fill"}}} -->
            <!-- wp:post-terms {"term":"tenup-genre"} /-->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->

    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Plot","textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd -->
            <!-- wp:paragraph {
                "metadata": {
                    "bindings": {
                        "content": {
                            "source": "core/post-meta",
                            "args": { "key": "tenup_movie_plot" }
                        }
                    }
                }
            } -->
            <p></p>
            <!-- /wp:paragraph -->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->

    <!-- wp:tenup/dl-item {"layout":{"type":"flex","flexWrap":"nowrap","verticalAlignment":"top"}} -->
        <!-- wp:tenup/dt {"content":"Stars","textColor":"text-secondary"} /-->
        <!-- wp:tenup/dd -->
            <!-- wp:paragraph {
                "metadata": {
                    "bindings": {
                        "content": {
                            "source": "tenup/block-bindings",
                            "args": { "key": "movieStars" }
                        }
                    }
                }
            } -->
            <p></p>
            <!-- /wp:paragraph -->
        <!-- /wp:tenup/dd -->
    <!-- /wp:tenup/dl-item -->
<!-- /wp:tenup/dl -->

Single Person (templates/single-tenup-person.html):

Wrap biography, born, birthplace, died, deathplace, and movies in tenup/dl blocks

Export the updated markup back to the theme files.

The Description List block output on the frontend Our Description List blocks on the frontend with bound innerblock content

Files changed in this lesson

File	Change type	What changes
`blocks/dl/`	New	Block metadata, edit component, render.php, styles
`blocks/dl-item/`	New	`parent: ["tenup/dl"]`, render.php
`blocks/dt/`	New	`parent: ["tenup/dl-item"]`, inline editable term
`blocks/dd/`	New	`parent: ["tenup/dl-item"]`, inner blocks container
`blocks/movie-runtime/`	New	`usesContext: ["postId", "postType"]`, semantic `<time>` output
`blocks/card/`	New	`variant` attribute with three `isActive` variations; `parent: ["core/post-template"]`; editor preview composed from `card-inner-{variant}` patterns; `save: () => null`
`blocks/movie-trailer/`	New	IMDB iframe or placeholder image based on `tenup_movie_trailer_id`; editor uses `usePostMetaValue`
`src/Blocks.php`	Revisited	`localize_block_editor_data()` exposes the trailer placeholder URL to editor JS via `window.tenupMovieTrailer`
`templates/single-tenup-movie.html`	Revisited	Plot/Stars/Genre wrapped in `tenup/dl` blocks; `tenup/movie-runtime` added to metadata row
`templates/single-tenup-person.html`	Revisited	All metadata paragraphs wrapped in `tenup/dl` blocks

Ship it checkpoint

DL blocks enforce nesting: only dl-item inside dl, only dt/dd inside dl-item
Movie runtime displays as "2h 28m" with semantic <time> element
Single movie template has DL with Genre, Plot, Stars
Single person template has DL with Biography, Born, Birthplace, Died, Deathplace, Movies
Archive pages from Lesson 9 now render movie, person, and default cards with no missing-block placeholders
Single movie pages render the IMDB trailer (or its placeholder fallback) via tenup/movie-trailer

Takeaways

Custom blocks: block.json for metadata, index.js for the editor, render.php for the frontend.
Dynamic blocks (PHP-rendered) avoid deprecation problems: the 10up standard.
Use parent and allowedBlocks to enforce nesting rules in parent/child block systems.
get_block_wrapper_attributes() handles wrapper classes, styles, and IDs. Always use it.
usesContext in block.json lets blocks read data from query loop context.
A variant-style attribute combined with isActive: ['variant'] lets one block expose multiple titled entries in the inserter and the block toolbar.
usePostMetaValue from @10up/block-components reads a single meta key inside edit.js with no boilerplate. Reach for it when you'd otherwise reach for useEntityProp.
An inline script via wp_add_inline_script is a reasonable bridge whenever editor JS needs a value that only PHP can compute.
Drop a folder with block.json into blocks/ and auto-registration handles the rest.

Learning Outcomes​

Tasks​

1. Copy blocks from the answer key​

2. Walk through the DL block family​

Enforcing structure with parent and allowedBlocks​

Dynamic rendering with render.php​

The editor component​

Auto-registration​

3. Walk through the Movie Runtime block​

4. Walk through the Card block​

Variant attribute and block variations​

Editor preview from the inner patterns​

5. Walk through the Movie Trailer block​

usePostMetaValue in the editor​

Placeholder URL via inline script​

6. Revisit single templates​

Files changed in this lesson​

Ship it checkpoint​

Takeaways​

Further reading​
