5. Styles: CSS Architecture and Style Variations

This lesson combines two related topics: how the scaffold organizes and code-splits CSS, and how style variations give editors controlled design choices.

Learning Outcomes

Understand the autoenqueue pipeline: assets/css/blocks/{namespace}/{block-name}.css loads only when the block is present.
Know the difference between block CSS, component CSS, and base CSS.
Know what style variations are (styles/{block-type}/{slug}.json) and how they differ from JS-registered block styles.
Be able to create a style variation and a code-split block stylesheet.

Part A: Copy CSS from the finished theme

Most of the CSS in this lesson is straightforward styling. Rather than writing every file from scratch, copy from the fueled-movies answer-key theme first, then we'll walk through what you have now.

Copy the files

From the wp-content directory, run:

# CSS files
cp themes/fueled-movies/assets/css/base/html.css themes/10up-block-theme/assets/css/base/html.css
cp themes/fueled-movies/assets/css/base/layout.css themes/10up-block-theme/assets/css/base/layout.css
cp themes/fueled-movies/assets/css/base/index.css themes/10up-block-theme/assets/css/base/index.css
cp themes/fueled-movies/assets/css/components/header.css themes/10up-block-theme/assets/css/components/header.css
cp themes/fueled-movies/assets/css/components/card.css themes/10up-block-theme/assets/css/components/card.css
cp themes/fueled-movies/assets/css/components/button.css themes/10up-block-theme/assets/css/components/button.css
cp themes/fueled-movies/assets/css/components/index.css themes/10up-block-theme/assets/css/components/index.css
cp themes/fueled-movies/assets/css/mixins/is-clickable-card.css themes/10up-block-theme/assets/css/mixins/is-clickable-card.css
mkdir -p themes/10up-block-theme/assets/css/blocks/core
cp themes/fueled-movies/assets/css/blocks/core/separator.css themes/10up-block-theme/assets/css/blocks/core/separator.css
cp themes/fueled-movies/assets/css/blocks/core/post-featured-image.css themes/10up-block-theme/assets/css/blocks/core/post-featured-image.css
cp themes/fueled-movies/assets/css/blocks/core/post-terms.css themes/10up-block-theme/assets/css/blocks/core/post-terms.css
cp themes/fueled-movies/assets/css/blocks/core/group.css themes/10up-block-theme/assets/css/blocks/core/group.css
cp themes/fueled-movies/assets/css/utilities/layout.css themes/10up-block-theme/assets/css/utilities/layout.css
cp themes/fueled-movies/assets/css/utilities/visually-hidden.css themes/10up-block-theme/assets/css/utilities/visually-hidden.css
cp themes/fueled-movies/assets/css/utilities/index.css themes/10up-block-theme/assets/css/utilities/index.css

# JS files
cp themes/fueled-movies/assets/js/is-clickable-card.js themes/10up-block-theme/assets/js/is-clickable-card.js
cp themes/fueled-movies/assets/js/frontend.js themes/10up-block-theme/assets/js/frontend.js

info

is-style-single-movie-backdrop styles in post-featured-image.css won't be visually testable until we build the single templates in Lesson 10. The .has-separator styles in group.css won't have a toggle until Lesson 11. Both are harmless CSS that we're placing now.

After copying, run npm run build and verify the site looks styled. The changes are subtle at this point, you can confirm our changes worked if the build succeeds and the Separator block matches what we've added to css/blocks/core/separator.css.

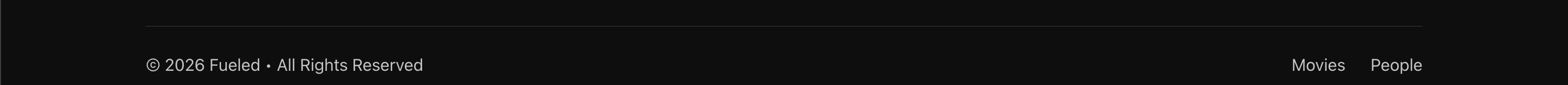

The Separator block in the Footer Notice the Separator is using our --wp--custom--color--background--light-transparent-10 variable created in theme.json

The CSS architecture

The scaffold organizes CSS into purpose-specific directories:

Directory	Loads	When to use	Example
`blocks/core/`	Per-block (autoenqueue)	Styling a core block	`separator.css`, `post-terms.css`
`blocks/{namespace}/`	Per-block (autoenqueue)	Styling a third-party block	`jetpack/contact-form.css` (example only, not used in our training)
`components/`	Globally via `frontend.css`	Styles that span multiple blocks	`card.css`, `header.css`
`base/`	Globally via `frontend.css`	Foundational resets and layout	`reset.css`, `layout.css`
`utilities/`	Globally via `frontend.css`	Single-purpose utility classes	`visually-hidden.css`
`templates/`	Globally via `frontend.css`	Template-specific styles	`index.css`
`globals/`	Not output directly	PostCSS variables available everywhere	`media-queries.css`
`mixins/`	Not output directly	PostCSS mixins available everywhere	`visually-hidden.css`

Block-scoped vs global: if a style only matters when a specific block is on the page, put it in blocks/. If it affects multiple blocks or the overall page, it belongs in components/ or base/.

How autoenqueue works

You create a CSS file at assets/css/blocks/core/separator.css
10up-toolkit compiles it to dist/blocks/autoenqueue/core/separator.css and src/Blocks.php registers each file with wp_enqueue_block_style()
WordPress only loads it on pages where the corresponding block is present

Editor and frontend CSS scopes

The CSS files directly in assets/css/ provide the main theme style entry and some editor adjustments:

File	Scope	Loaded via	Purpose
`frontend.css`	Frontend (and editor canvas)	`wp_enqueue_scripts` + `add_editor_style()`	Main theme styles, imports base/components/utilities/templates
`editor-frame-style-overrides.css`	Editor frame only	`enqueue_block_editor_assets`	Styles for the editor chrome outside the editing canvas (toolbar, sidebar)
`editor-canvas-style-overrides.css`	Editor canvas only	`enqueue_block_assets` (admin only)	Styles inside the canvas iframe, e.g. making the post title look like part of the editor UI

tip

The editor has two CSS scopes. The "frame" is everything outside the editing area. The "canvas" is the iframe where blocks render. frontend.css is loaded in the canvas via add_editor_style() so blocks look the same in the editor as they do on the frontend. The frame and canvas override files are separate.

Key CSS patterns

Sticky header (assets/css/components/header.css):

header:where(.wp-block-template-part) {
    backdrop-filter: saturate(180%) blur(20px);
    background-color: var(--wp--custom--color--background--nav);
    inset-block-start: var(--wp-admin--admin-bar--height, 0);
    isolation: isolate;
    position: sticky;
    z-index: 1000;

    & .wp-block-site-title {
        font-family: "SF Pro Display", "SF Pro Icons", "Helvetica Neue", Helvetica, Arial, sans-serif;
        font-size: 21px;
        font-weight: 600;
        letter-spacing: 0.011em;
        line-height: 1.1428;
    }
}

Genre pill styling (assets/css/blocks/core/post-terms.css):

.wp-block-post-terms {
    display: flex;
    flex-wrap: wrap;
    gap: var(--wp--custom--spacing--12);

    & .wp-block-post-terms__separator { display: none; }

    & [rel="tag"] {
        background: var(--wp--custom--color--background--light-transparent-10);
        border-radius: 45px;
        color: var(--wp--custom--color--text--primary);
        padding: 8px 18px;
        text-decoration: none;
        transition: background-color 0.2s ease;

        &:hover { background: var(--wp--custom--color--background--light-transparent-20); }
    }
}

Has-separator dots (assets/css/blocks/core/group.css):

.wp-block-group.has-separator {
    gap: 0;

    & > * {
        align-items: center;
        display: flex;
    }

    & > *:not(:first-child)::before {
        background-color: currentcolor;
        block-size: 4px;
        border-radius: 999px;
        content: "";
        display: inline-flex;
        inline-size: 4px;
        margin-inline: var(--wp--custom--spacing--8);
    }
}

Clickable cards

The assets/js/is-clickable-card.js file is an accessibility-focused pattern based on Inclusive Components. Add the is-clickable-card class to the card's wrapping Group in the pattern, and the JS makes the entire card clickable by forwarding clicks to the primary link (the post title heading link). It handles text selection, scroll detection, and Ctrl/Cmd+click. Students just need to copy the files.

The heading link provides good screen reader context since it contains the post title. The is-clickable-card class is added via the "Additional CSS class(es)" panel in the block editor. This is fine because the card pattern is code-only (Inserter: false), so editors never interact with it.

warning

If this were an editor-facing block, a block extension with a toggle control would be better since classes added via the Additional CSS panel can be accidentally deleted with no way for editors to know how to restore them.

Card hover CSS (assets/css/components/card.css) uses the mixin from assets/css/mixins/is-clickable-card.css to apply hover feedback. The title starts with a transparent underline and transitions to currentcolor on card hover (smooth underline reveal). The secondary button gets its hover state. This is why theme.json doesn't set textDecoration: none on link hover, as that would fight the CSS transition.

assets/css/components/card.css
.is-clickable-card .wp-block-post-title {
    text-decoration: underline;
    text-decoration-color: transparent;
    transition: text-decoration-color 0.2s ease;
}

.is-clickable-card {

    @mixin is-clickable-card-hover {

        [data-is-clickable-card-primary] {
            text-decoration-color: currentcolor;
        }

        .wp-block-button [data-is-clickable-card-secondary] {
            background-color: var(--wp--custom--color--background--light-transparent-20, rgba(163, 163, 163, 0.3));
            box-shadow: 0 2px 2px 0 rgba(0, 0, 0, 0.25) inset;
        }
    }
}

The @mixin is-clickable-card-hover is defined in assets/css/mixins/is-clickable-card.css and encapsulates the :has() hover selector, excluding secondary interactive elements from triggering the card hover:

assets/css/mixins/is-clickable-card.css
@define-mixin is-clickable-card-hover {
    &:where(:hover:not(:has([data-is-clickable-card-secondary]:hover, [data-is-clickable-card-secondary]:focus))) {
        @mixin-content;
    }
}

Update the card pattern

To see the clickable card in action, update patterns/card.php to add the is-clickable-card class to the outer Group block. The post title already has "isLink":true, so the JS will automatically pick it up as the primary link. Replace the contents of patterns/card.php with:

patterns/card.php
<?php
/**
 * Title: Base Card
 * Slug: tenup-theme/base-card
 * Description: A card pattern with a featured image, title, date, and category.
 * Inserter: false
 *
 * @package TenupBlockTheme
 */

?>

<!-- wp:group {"align":"wide","className":"is-clickable-card","style":{"spacing":{"blockGap":"0"},"border":{"radius":"8px","width":"1px"}},"layout":{"type":"flex","orientation":"vertical","justifyContent":"stretch","flexWrap":"nowrap"}} -->
<div class="wp-block-group alignwide is-clickable-card" style="border-width:1px;border-radius:8px">

	<!-- wp:post-featured-image {"aspectRatio":"16/9","width":"100%","height":"","style":{"border":{"radius":{"topRight":"8px","bottomRight":"0px","topLeft":"8px","bottomLeft":"0px"}}},"displayFallback":true} /-->

	<!-- wp:group {"align":"wide","className":"is-style-default","style":{"spacing":{"padding":{"top":"var(--wp--preset--spacing--24)","right":"var(--wp--preset--spacing--24)","bottom":"var(--wp--preset--spacing--24)","left":"var(--wp--preset--spacing--24)"},"blockGap":"var:preset|spacing|8"},"layout":{"selfStretch":"fit"},"border":{"width":"0px","style":"none","radius":{"topLeft":"0px","topRight":"0px","bottomLeft":"8px","bottomRight":"8px"}}},"layout":{"type":"flex","orientation":"vertical","verticalAlignment":"space-between"}} -->
	<div class="wp-block-group alignwide is-style-default" style="border-style:none;border-width:0px;border-top-left-radius:0px;border-top-right-radius:0px;border-bottom-left-radius:8px;border-bottom-right-radius:8px;padding-top:var(--wp--preset--spacing--24);padding-right:var(--wp--preset--spacing--24);padding-bottom:var(--wp--preset--spacing--24);padding-left:var(--wp--preset--spacing--24)">

		<!-- wp:post-title {"isLink":true,"align":"wide","style":{"spacing":{"margin":{"top":"0","right":"0","bottom":"0","left":"0"}}}} /-->

		<!-- wp:group {"style":{"spacing":{"blockGap":"var:preset|spacing|8"}},"layout":{"type":"flex","flexWrap":"nowrap"}} -->
		<div class="wp-block-group">

			<!-- wp:post-date /-->
			<!-- wp:post-terms {"term":"category"} /-->

		</div>
		<!-- /wp:group -->

	</div>
	<!-- /wp:group -->

</div>
<!-- /wp:group -->

The only change from the previous version is "className":"is-clickable-card" on the outer Group block (and the matching is-clickable-card in the rendered class attribute). After rebuilding, hovering over a card on the frontend should reveal the title underline and the entire card surface should be clickable.

info

Lesson 9 replaces this pattern with a tenup/card custom block, and Lesson 12 builds the block. The is-clickable-card class survives the migration: the block applies it via useBlockProps({ className: 'is-clickable-card' }), and the same JS utility you set up here keeps working.

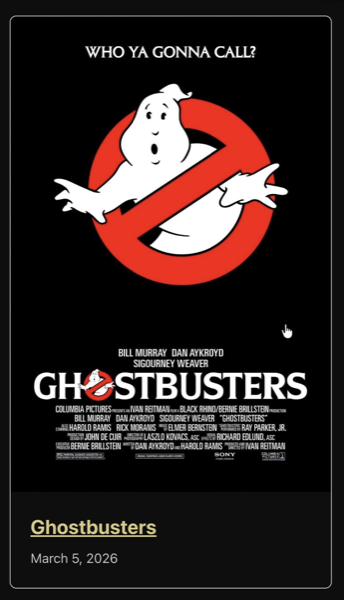

Screenshot of a card hover showing an underlined title Hovering over any part of the card should show the cursor as pointer and underline the title

Part B: Style variations

What are style variations?

Style variations are JSON files in the styles/ directory that give editors selectable design options in the block inspector's Styles panel. They use the theme.json schema and can target the full range of design tokens: colors, spacing, borders, shadows, and nested elements.

Explore an existing style variation

The scaffold already ships three "surface" style variations for the Group block in the styles/ directory. Open styles/surface-primary.json and notice it has an empty color object:

styles/surface-primary.json (before)
{
	"$schema": "https://schemas.wp.org/wp/6.7/theme.json",
	"version": 3,
	"title": "Primary",
	"slug": "primary",
	"blockTypes": [
		"core/group"
	],
	"styles": {
		"color": {}
	}
}

Update the color object to set a background and text color:

styles/surface-primary.json (after)
{
	"$schema": "https://schemas.wp.org/wp/6.7/theme.json",
	"version": 3,
	"title": "Primary",
	"slug": "primary",
	"blockTypes": [
		"core/group"
	],
	"styles": {
		"color": {
			"background": "var(--wp--preset--color--white)",
			"text": "var(--wp--preset--color--black)"
		}
	}
}

To see it in action, add a Group block in the editor with the "Primary" style applied:

<!-- wp:group {"className":"is-style-primary","layout":{"type":"constrained"}} -->
<div class="wp-block-group is-style-primary"><!-- wp:heading -->
<h2 class="wp-block-heading">Hello world</h2>
<!-- /wp:heading --></div>
<!-- /wp:group -->

You should see the Group get a white background with black text. You can also select the Group block and pick the "Primary" style from the Styles panel in the block inspector. Delete the test block when you're done.

The Group block in the editor with Primary style applied The Group block with our Primary style applied. Notice the Style preview also will display our changes

Hands-on: create style variations

Now that you've seen how a style variation works, we'll delete the scaffold surface variations and create a targeted one for the Button block.

Delete styles/surface-primary.json, styles/surface-secondary.json, and styles/surface-tertiary.json.
Create styles/button/secondary.json: transparent background, primary text, inset shadow:

info

Directories under styles/ are for your own organization only. They do not target blocks. The "blockTypes" property in each JSON file is what connects a style to a specific block (here, "core/button").

You can put a file in styles/button/, styles/core/, or jusr styles/ directly, WordPress treats them identically. Slugs, however, must be unique across all files regardless of directory.

styles/button/secondary.json
{
    "$schema": "https://schemas.wp.org/wp/6.9/theme.json",
    "version": 3,
    "title": "Secondary",
    "slug": "secondary",
    "blockTypes": ["core/button"],
    "styles": {
        "color": {
            "background": "var(--wp--custom--color--background--light-transparent-10, rgba(163, 163, 163, 0.15))",
            "text": "var(--wp--custom--color--text--primary)"
        },
        "shadow": "0 1px 2px 0 rgba(255, 255, 255, 0.08) inset"
    }
}

Notice we only define the static styles (color, shadow) here. The hover and focus states are handled in CSS -- we'll explain why below.

Add hover/focus styles in CSS. Add the following to assets/css/components/button.css:

assets/css/components/button.css (addition)
.is-style-secondary .wp-element-button {

    &:hover,
    &:focus {
        background-color: var(--wp--custom--color--background--light-transparent-20, rgba(163, 163, 163, 0.3));
        box-shadow: 0 2px 2px 0 rgba(0, 0, 0, 0.25) inset;
    }
}

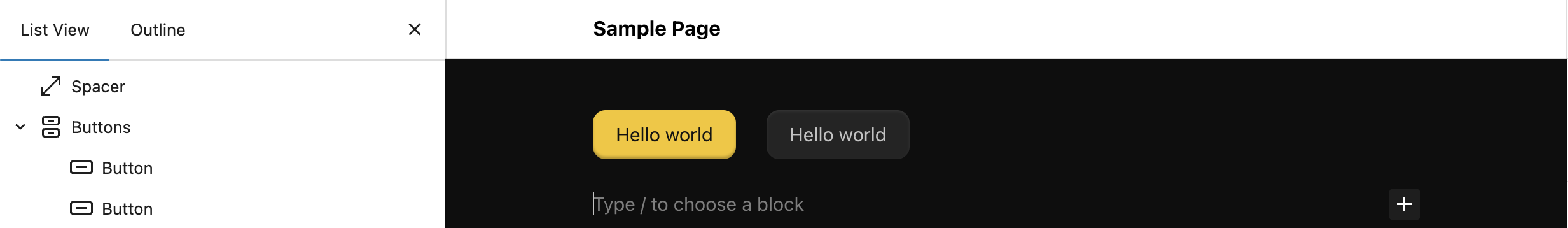

Rebuild and verify: "Secondary" style appears for Button blocks in the editor and frontend.

Why hover/focus lives in CSS, not the variation JSON

You might wonder why we didn't put :hover and :focus in the variation JSON. Button style variations have a known specificity problem: the default button :hover/:focus styles from theme.json generate CSS with the same specificity as the variation's pseudo-state styles, and the defaults load last, so they always win. This is tracked in gutenberg#64856.

The fix is straightforward: keep static styles (color, shadow) in the variation JSON where they work reliably, and handle pseudo-states in CSS where you control specificity.

info

We're using a Button style variation here specifically to show you this limitation. In practice, you could just as easily register a block style (and arguably, should) with registerBlockStyle() in JS and lean entirely on CSS instead of writing json in the styles/ directory. Both approaches produce the same is-style-{slug} class on the block.

Style variations vs JS block styles

Both show up in the editor's Styles panel, but they work very differently:

Feature	Style variations (JSON)	Block styles (JS)
Format	JSON file in `styles/`	`registerBlockStyle()` in JS
What it does	Applies `theme.json`-style design tokens	Adds a CSS class name
Can target nested elements	Yes (`elements.button`, `elements.link`)	No
Can set spacing, borders, shadows	Yes	No, only via the added class in CSS
Registration	Automatic from file system	Manual via JS

Files changed in this lesson

File	Change type	What changes
`assets/css/base/html.css`	New	`a, button { transition: all 0.2s ease-in-out; }`
`assets/css/base/layout.css`	Modified	Added `accent-color` on `html`; added `@view-transition { navigation: auto; }`
`assets/css/base/index.css`	Modified	Added `@import url("html.css")`
`assets/css/components/header.css`	New	Sticky header with `backdrop-filter`, nav background, z-index, site-title font styling
`assets/css/components/card.css`	New	Full-height groups, cursor utilities, clickable card hover styles via mixin
`assets/css/mixins/is-clickable-card.css`	New	Encapsulates `:has()` hover selector excluding secondary interactive elements
`assets/js/is-clickable-card.js`	New	JS-based clickable card utility, forwards clicks to primary heading link
`assets/css/components/button.css`	New	`.wp-element-button` flex alignment with gap, pointer cursor; `.is-style-secondary` hover/focus states
`assets/css/components/index.css`	Modified	Added imports: `./header.css`, `./card.css`, `./button.css`
`assets/css/blocks/core/separator.css`	New	Custom border-color using transparent token, 1px top border
`assets/css/blocks/core/post-featured-image.css`	New	`flex-shrink: 0`; `.is-style-single-movie-backdrop` blurred backdrop effect
`assets/css/blocks/core/post-terms.css`	New	Genre pill styling with transparent background, rounded borders
`assets/css/blocks/core/group.css`	New	`.has-separator` dot pseudo-elements between children
`assets/css/utilities/layout.css`	New	`.flex-shrink-0 { flex-shrink: 0; }`
`assets/css/utilities/visually-hidden.css`	Modified	Added `.is-hidden { display: none; }`
`assets/css/utilities/index.css`	Modified	Added `@import url("layout.css")`
`styles/surface-primary.json`	Removed	Replaced by targeted per-block variations
`styles/surface-secondary.json`	Removed	Replaced by targeted per-block variations
`styles/surface-tertiary.json`	Removed	Replaced by targeted per-block variations
`styles/button/secondary.json`	New	Secondary button: transparent bg, primary text, inset shadow

Ship it checkpoint

Sticky header with backdrop blur
Card overlay links work (entire card is clickable)
Separator CSS only loads on pages with separators (verify in DevTools)
"Secondary" style appears for Button blocks in the editor

Takeaways

Block-scoped CSS loads per-block via assets/css/blocks/. Component CSS loads globally via frontend.css. Choose intentionally.
WordPress inlines small stylesheets as critical CSS. Block-scoped CSS benefits from this automatically.
Style variations are JSON files that give editors controlled styling choices. They support the full theme.json styles schema.
Button variations need to target elements.button, not the wrapper.
Clickable cards use JS-based progressive enhancement for accessibility. The heading link is the primary link (good screen reader context), and the entire card surface is clickable.

Learning Outcomes​

Part A: Copy CSS from the finished theme​

Copy the files​

The CSS architecture​

How autoenqueue works​

Editor and frontend CSS scopes​

Key CSS patterns​

Clickable cards​

Update the card pattern​

Part B: Style variations​

What are style variations?​

Explore an existing style variation​

Hands-on: create style variations​

Why hover/focus lives in CSS, not the variation JSON​

Style variations vs JS block styles​

Files changed in this lesson​

Ship it checkpoint​

Takeaways​

Further reading​

Learning Outcomes

Part A: Copy CSS from the finished theme

Copy the files

The CSS architecture

How autoenqueue works

Editor and frontend CSS scopes

Key CSS patterns

Clickable cards

Update the card pattern

Part B: Style variations

What are style variations?

Explore an existing style variation

Hands-on: create style variations

Why hover/focus lives in CSS, not the variation JSON

Style variations vs JS block styles

Files changed in this lesson

Ship it checkpoint

Takeaways

Further reading
